Laser Welding is ideal for applications requiring pin-point accuracy at high production rates. It’s non-contact, doesn’t require a vacuum, and is excellent for joining thin materials and small components.
Cost Effective and High Quality
EB Industries is a leading laser beam welding service provider delivering high quality, mission critical parts to customers all across the US. We have laser welded millions of parts and assemblies for customers in a multitude of industries, including critical medical and aerospace applications. We are ISO 13485:2016 and AS9100 certified, have full engineering and metallurgy capabilities, and our extensive pre and post processing services make us an excellent subcontractor and value added partner to our customers.
Application Advantages of Laser Welding
Deep Weld Penetration – Weld penetration can be closely controlled, and ranges from a minuscule 0.005 inches to a depth of up to 0.25 inches.
Micro Part Welding – Given the small and precise nature of the laser beam, very small and very thin materials can be easily joined. This includes welding of foils, stents, sensor diaphragms, and surgical instruments.
Low Heat – Pulsed lasers can minimize the amount of heat applied to a part, thus helping to keep critical electronics and other components cool.
Dissimilar and Crack Sensitive Material Welding – Laser welding can join dissimilar materials and also crack sensitive materials.
No Vacuum Requirement – Laser welding does not require the parts be in a vacuum, which can result in faster production cycles.
High Feed Rates – Laser welding can occur at feed rates up to 200 inches per minute, which is much faster than conventional welding processes such as MIG and TIG. High feed rates mean faster welds and lower costs.
A comparison of welding processes:
Electron Beam
Laser
Conventional/Manual
Typical Weld Cost
$$$
$
$$
Size Restrictions
Limited to vacuum chamber size
Workstation dependant
None if done manually
Dissimilar Materials
Excellent
Good w/stir welding
Challenging
Magnetic Materials
Challenging
Excellent
Process dependant
Depth (max penetration)
3 inches
1 inch
Shallow wout multipass & notch
Width to Depth ratio (min w/d%)
Extraordinary (10%)
Excellent (25%)
Poor (various)
Heat Generated
Low/medium
Low (pulsed) / High (CW)
High
Purity (no electrode/filler)
100%
100%
Limited based on process
Repeatable
Highly with CNC
Highly with CNC
Limited / manual w/out CNC
Hard to reach area
Excellent
Good – gas coverage concerns
Limited
Capital Investment (barrier to entry)
$$$$$
$$$
$
Quality Management for Laser Beam Welding
At EB Industries we are trusted to handle the laser welding for mission critical applications in the Aerospace and Medical industries that require extremely low failure rates. As a result, EB Industries maintains the highest levels of quality standards to ensure our welds meet the uncompromising requirements of our customers. We are ISO 13485:2016 and ISO 9001:2015/AS9100 certified, have full engineering and metallurgy capabilities, and our extensive pre and post processing services make us an excellent subcontractor value for many of our customers.
Because we handle the Laser Welding for many critical applications in the Aerospace and Medical industries that require extremely low failure rates, EB Industries maintains the highest levels of quality.
ISO 9001:2015/AS9100 certified organization delivering international quality standards.
ISO 13485:2016 certified for Medical Devices
Services delivered in compliance with the aerospace quality system AC7110/3 Rev. E and AC7004 standards.
Full quality control and inspection system in compliance with MIL-I-45208A.
Metrology program in accordance with MIL-C-45662A standards.
Personnel
All our Laser welding technicians are highly trained and average 12 years of experience. Additionally, they are supported by full engineering and maintenance staff, a dedicated quality control department and an in-house machine shop.

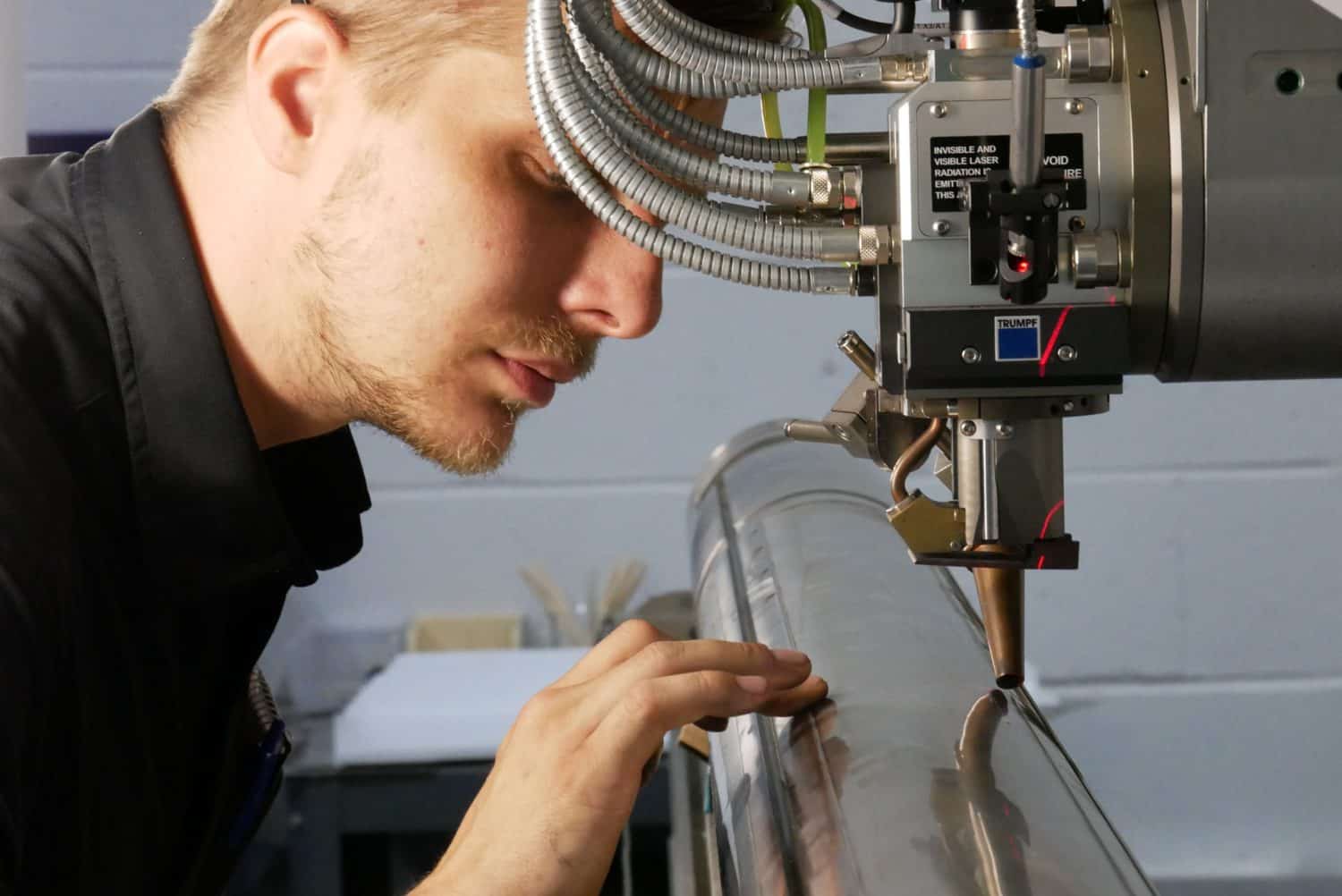

An in-process inspection of a critical weld on a magnetic resonance device for an oil well drill.
Equipment
We have a variety of laser welding systems with different beam and control characteristics, which allow us to handle a wide range of applications. In addition to computer controlled equipment, we also have manual lasers welding systems, glove boxed systems, etc.
IPG Photonics YLS-4000 4kW Ytterbium fiber laser with power ratings from 400W to 4kW, with both continuous wave (CW), and pulsed operating modes. Workstation has 4 axis of CNC motion as well as wobbler optics.
Trumpf TruLaser Cell 3000 with 4kW Trumpf TruDisk 4001 fully automated production laser welding system. Workstation has 5 axis of CNC motion.
IPG YLR-450/4500-QCW – 4,500W peak power and 450W average power laser welding system. EBI custom designed state-of-the-art laser workstation, 4 axis of CNC motion.
Multiple laser tacking systems by Trumpf and LaserStar with power up to 200W.
Lumonics JK 701H – 550W Nd:YAG with Aerotech 3200 4 axis workstation.
Raytheon SS550 – 400W Nd:YAG with Allen Bradley 8400 4-Axis Control, 3D Compound Curvature Capable
Our Trumpf TrueLaser in operation
Additional Services
Laser welded parts often require additional assembly steps before and after the actual weld. We offer a full suite of pre and post processing services.
Pre Processing
CAD/CAM Product Design and Weld Design
Tooling Design & Fabrication
Parts Cleaning & Assembly
Strategic Sourcing and Subcontractor Contract Management
Post Processing
Metallurgic Evaluations
Leak Testing
Destructive and Non-Destructive Testing
Post Weld Thermal Treatment
Our Customers tell our story
Their technical skills are what sets them apart. They are easy to work with, and they have a good technical team.
NP
Engineering Manager at a major Aerospace/Defense manufacturer
We are a company that needs quick turnaround on laser sealed devices and for us, a top strength is their commitment to delivery. They always meet our delivery requirements. We’ve used several suppliers, but we continually use this one because they consistently maintain their commitment dates, which is critical to both us and our customers.
Bob
Mfg/QA Director at a Microwave and RF Device Manufacturer
We are very happy with the quality of the work. They really know what they’re doing.
Renata
Purchasing Agent at a Precision Machining Shop for Aerospace and Medial OEM’s.
They are good communicators, very reliable with on-time delivery. They seldom miss the date they committed to.
Marianne
Purchasing Agent at a Custom Parts Manufacturer used by Aerospace OEM’s
They are always available when we need welding. Their facilities can handle our needs, and that’s unique to them.
Frank
Purchasing Agent at an Aerojet Rocketdyne Company
The people who work there are exceptional. They get things done for us in a timely fashion.
Mike
Senior Buyer at an Aerospace Component Manufacturer
Our Laser Weld Customers
Talk to an Engineer?
We have engineers available who can answer all your questions about laser welding — from materials to standards to cost effectiveness. You can even upload prints and documents if you wish – so that we can look things over and get you an answer fast.
